Du Pont Type Impact Tester | No.451/452

Category:

Description

No.451 Du Pont Type Impact Tester

The Du Pont Type Impact Tester is an impact tester which measures impact resistance of coatings or plastic sheets.

Specifications

Model H-50 H-100 / H-200
Application Coatings Plastic sheets
Falling height
  • Max. 500mm
  • Max. 1000mm (H-100)
  • Max. 2000mm (H-200)
Falling weight 300g, 500g, 1000g 1000g, 2000g
Impact head
  • R1.59mm
  • R3.18mm
  • R4.76mm
  • R6.35mm
  • R12.7mm
  • R7.9mm
Receive block
  • R1.59 / R3.18mm
  • R4.76 / R6.35mm
  • Flat
  • R8.1 / R15.2mm
Dimensions
  • W460 x D300 x H760mm
  • W450 x D300 x H1260mm (H-100)
  • W460 x D300 x H2260mm (H-200)
Mass (Approx.)
  • 20kg
  • 25kg (H-100)
  • 30kg (H-200)
Related standards JIS K 5600-5-3 ASTM D2794

JIS K 5600-5-3

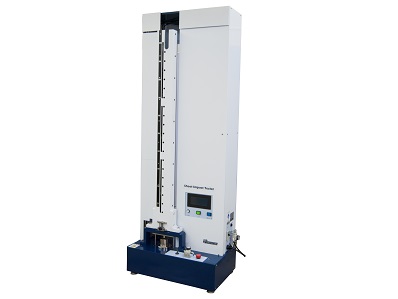

No.452 Sheet Impact Tester

The Sheet Impact Tester measures impact resistance of coatings or plastic sheets.  Weight lifting is motorized.

Specifications

Falling height Max. 1000mm
Falling weight 300g, 500g, 1000g, 2000g

(Selection)
Impact head
  • R1.59
  • R3.18
  • R4.76
  • R6.35
  • R7.9
  • R12.7mm

(Selection)
Receive block
  • R1.59
  • R3.18
  • R4.76
  • R6.35
  • R8.1
  • R15.2mm
  • Flat

(Selection)
Power supply Single-phase, AC100V, 50/60Hz, 0.3kVA (or specify)
Dimensions W550 × D350 × H1500mm
Weight Approx. 150kg
