Description

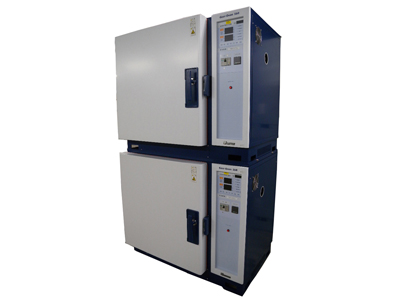

The Geer type Oven evaluates aging of materials in hot air atmosphere with a fixed air change rate. Air change rate is measured by methods of electric power consumption.
Specifications
| Model | 45 series | 60 series |
| Inside dimensions | W450 × D450 × H500mm | W600 × D600 × H600mm |
| Temperature range | RT+20 to 300°C | |
| Inside oven wind speed | 0.5±0.1m/s | |
| Air change rate | 2 to 20 times/h
Note: Adjustable up to 50 times/h (60 series) or 60 times/h (45 series) |
|
| Power supply | Three-phase, AC200V, 50/60Hz, 3.8kVA (or specify) | Three-phase, AC200V, 50/60Hz, 4.8kVA (or specify) |
| Dimensions | W1090 × D800 × H1430mm | W1170 × D920 × H1550mm |
| Weight (Approx.) | 200kg | 290kg |
Related standards
| ISO 188 | Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests |
