No.571 Gas Transmission Rate Tester (Gas Permeability Tester)

Category:

Description

The Gas Permeability Tester measures gas transmission rate (gas barrier property) of packaging materials such as plastic films.

Measurement of gas transmission rate of polymer films such as plastic films, etc. is important because, for example in case of packaging materials, preservation of the content of a package considerably depends on the gas barrier property of the packing material.

Recently gas transmission rate measurement is being used in new fields such as functional polymer films.

Features

  • An automatic valve is used to realize fully automatic measurement. (No need for conventional manual valve operation)
  • Many kinds of gases can be measured. (Differential pressure method)
  • Additional expansion is possible by modular design.
  • Since measurement is performed while data is stored, data can be analyzed even during testing.
  • Mail transmission function allows you to receive a message when an error occurs or the test ends.
  • Allows analysis of diffusion coefficient and solubility coefficient (Optional)
  • High sensitivity vacuum pressure gauge of reading accuracy 0.25% is employed.
  • Specimen table supports two different sizes of specimen.
  • Performs temperature error correction of transmission gas.

Specifications

Model CR1 CR3 CT1 CT3
Number of specimen 1 3 1 3
Temperature range Room temperature 10 to 90°C (Hot water circulation)
Dimensions of specimen

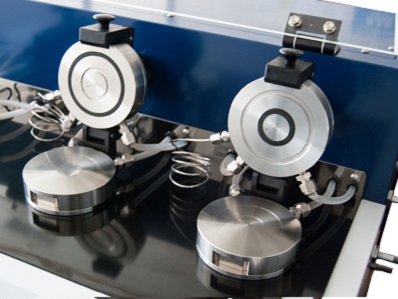

  • 50 × 50mm（Measuring cell: ∅30mm, Transmission area: 707mm²）
  • 90 × 90mm（Measuring cell: ∅70mm, Transmission area: 3848mm²）
GTR measurement range

(To be selected type A or B upon order)
  • Type A: 4.5×10-15〜4.5×10-12 [mol/(m2・s・Pa)]　（0.1 〜100[fm/(Pa・s)]）
  • Type B: 4.5×10-14〜4.5×10-11 [mol/(m2・s・Pa)]　（1 〜1000[fm/(Pa・s)]）
Test gas
  • Oxygen
  • Nitogen
  • Carbon dioxide
  • Air
  • Hydrogen (Optional) etc.
Test gas pressure 0 to 200kPa
Measurement items
  • Gas transmission rate
  • Gas transmission coefficient
  • Diffusion coefficient, Dissolution coefficient (Optional)
Data processing unit Provided as standard (PC, Software)
Options
  • Additional measurement module, Room temperature model (MCR1）
  • Additional measurement module, Temperature control model (MCT1）
  • Diffusion coefficient measurement device (CKK-1・CKK-3）
  • Hydrogen gas measurement unit（CH）
Power requirement
  • Main unit: Single-phase, AC100V, 50/60Hz, 0.5kVA
  • PC: Single-phase, AC100V, 50/60Hz, 0.3kVA
  • Vacuum pump: Single-phase, AC100V, 50/60Hz, 0.6kVA
  • Warm water circulation bath: Single-phase, AC100V, 50/60Hz, 1.5kVA
  • With hydrogen gas measurement option: Three-phase, AC200V, 50/60Hz, 1.0kVA
Compressed air requirement 0.4MPa
Dimensions
  • W550 × D560 × H470mm（CR1, CT1）
  • W800 × D560 × H470mm（CR3, CT3）
Weight
  • Approx. 50kg（CR1, CT1）
  • Approx. 70kg（CR1, CT1）

Related Standards

ISO 15105-1 Plastics — Film and sheeting — Determination of gas-transmission rate — Part 1: Differential-pressure methods
ISO 2782-1 Rubber, vulcanized or thermoplastic — Determination of permeability to gases — Part 1: Differential-pressure methods
ISO 7229 Rubber- or plastics-coated fabrics — Measurement of gas permeability
JIS K 7126-1 Plastics-Film and sheeting-Determination of gas-transmission rate- Part 1 : Differential-pressure method
JIS K 6275-1 Rubber, vulcanized or thermoplastic- Determination of permeability to gases-Part 1: Differential pressure method
JIS K 6404-3 Testing methods for rubber- or plastics-coated fabrics- Part 3: Determination of physical properties (Application)
