Description
COF tester
Application

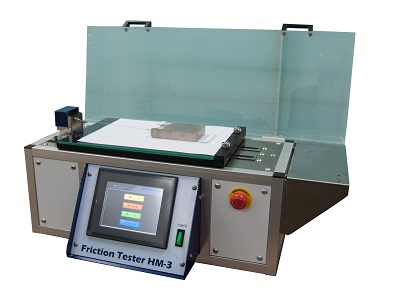

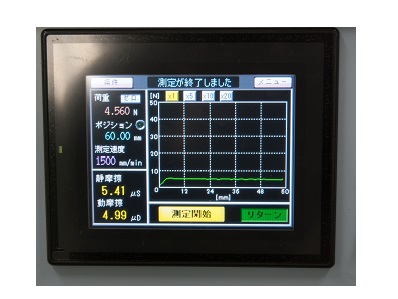

The Friction Tester, HM-3 measures and digitally display friction coefficient of films and papers.
Specifications
| Dimensions of table | W330 x D225 t=5 |
| Table travel distance | 1 to 200mm |
| Table speed | 5 to 1500mm/min. |
| Load cell |
(Select one out of these) |
| Sled |
(Select one out of these) |
| Dimensions | W540 (Max630) x D350 x H280mm
W650 x D350 x H330mm (with optional safety cover) |
| Mass (Approx.) | 19kg |
| Power supply | Single-phase, AC100 to 240V, 50/60Hz, 0.2kVA |
Related standards
ISO 8295
JIS K 7125, P 8147
